VENOM
Closely coupled. Built to carve.
VENOM is a closely coupled V-tail blended wing body aircraft. It began as an experiment: how manoeuvrable can a compact FPV wing become without giving up predictable, stable handling? Designed for mid-to-high-speed proximity flying, its closely coupled V-tail blended wing body combines a bell-shaped lift distribution, a natural proverse-yaw tendency and full three-axis control. After several experimental configurations and extensive flight testing, the result is a precise, confidence-inspiring aerobatic wing that is simply hard to stop flying.
VENOM digital aircraft package
3D-printable VENOM aircraft files, build guidance and reference setup information. One-time purchase with future aircraft-file updates included. No physical parts or electronics are shipped.
PayPal
VENOM · Aircraft
This is what VENOM was built for.
Real onboard footage from VENOM. The closely coupled V-tail blended wing body was developed for predictable handling, clean coordinated turns and precise mid-to-high-speed proximity aerobatics. See the aircraft from the pilot's perspective.
Fast enough to rip. Precise enough to carve.
Reference figures for VENOM's 2S twin-1103 / DJI O4 Wide configuration. Speed, stall behaviour and flight time vary with build mass, battery, weather and flying style.
Core specifications.
Values below follow the VENOM reference BOM (revision 01). Finished mass depends on the print and equipment installation.
Predictable by design. Agile by nature.
VENOM is a closely coupled V-tail blended wing body, developed for highly manoeuvrable, mid-to-high-speed proximity flying. The aim was an aircraft that holds its line with confidence, responds cleanly through aerobatics and remains predictable when flying close to the ground.

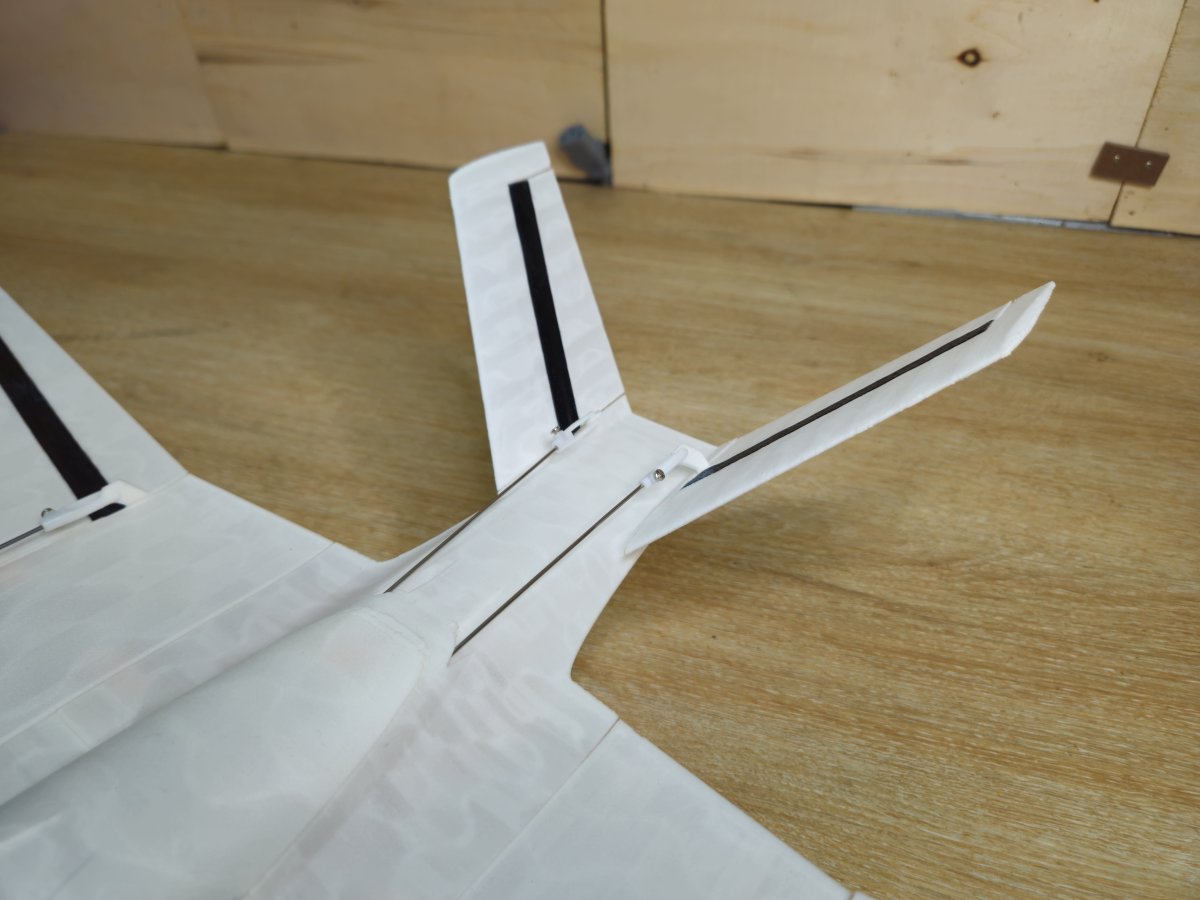

Its bell-shaped spanwise lift distribution and wing geometry are designed to promote proverse yaw — a natural tendency to yaw into a turn. The V-tail complements this behaviour with ruddervator pitch and yaw control, while contributing to the aircraft's intended pitch and yaw damping.
Many configurations. One I can't stop flying.
VENOM has been through multiple motor arrangements, control mixes, centre-of-gravity positions and rounds of simulation and flight testing. Some versions were pitch-limited. Others needed more work to feel right. The present configuration is the result of that iteration: stable and predictable when you need it to be, yet brilliantly rewarding in aerobatics and low-level FPV. It's the aircraft I keep reaching for.
Modular wings. Faster repairs.
VENOM is designed around independently replaceable wing sections and motor-mount assemblies. The outer wing panels and motor mounts are often the first parts to take damage in a crash, so there is no need to rebuild the entire aircraft when only one section is broken.
The modular WingLoc joints and carbon spar make the airframe easier to transport and service, too. After a crash, having a small stock of printed spares can turn a damaged aircraft into a quick repair rather than a new project.
The additional WingLoc close-ups temporarily show SPECTRE as a reference. VENOM-specific assembly details are in the VENOM Build Guide.
Preview the VENOM build guide.
Browse selected illustrations from the actual printing and assembly instructions. See how the aircraft is prepared, fitted out and assembled before starting your own build.

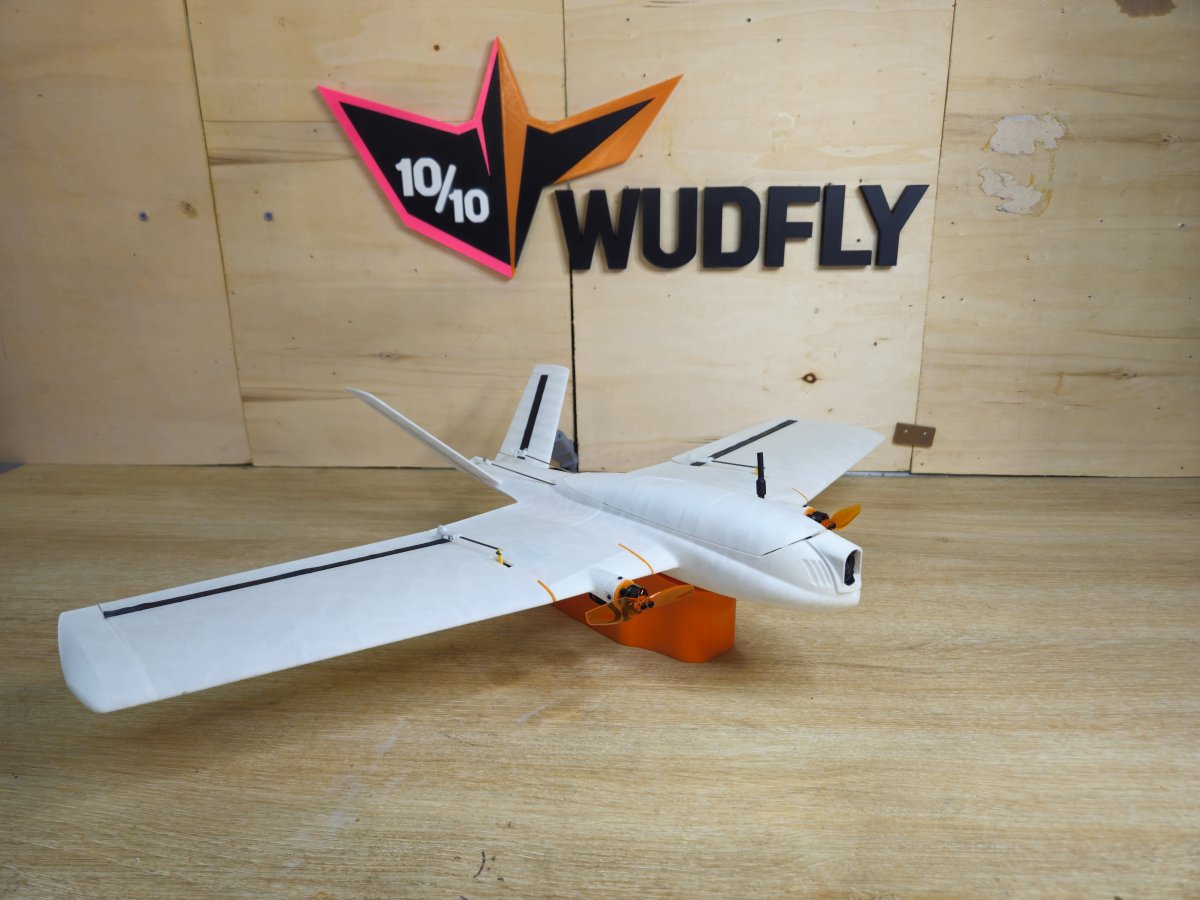

See the complete VENOM airframe.
Start with a rotating view of the finished closely coupled V-tail blended wing body. Then explore the real print and assembly illustrations that explain how its components come together.
This is a preview of selected pages. The complete VENOM build guide contains the detailed instructions for each step.

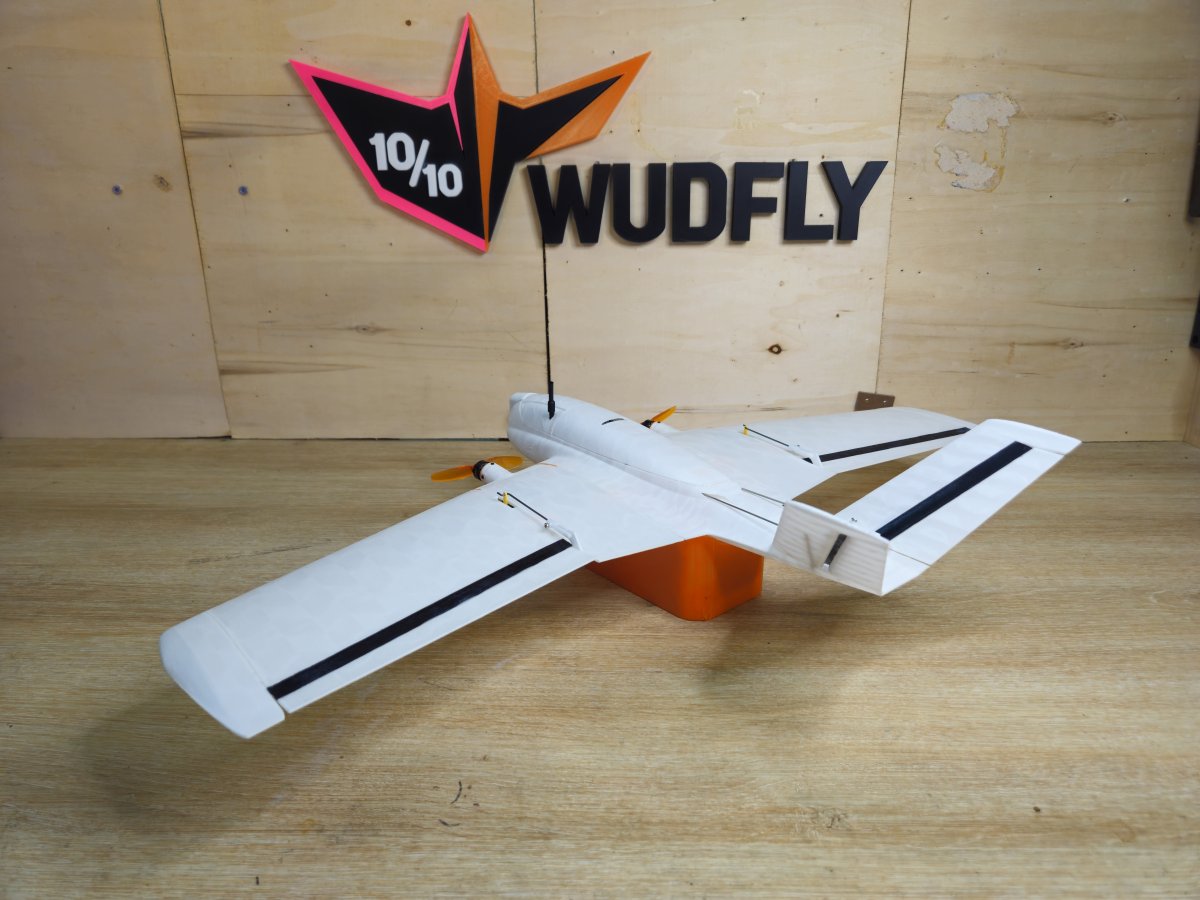

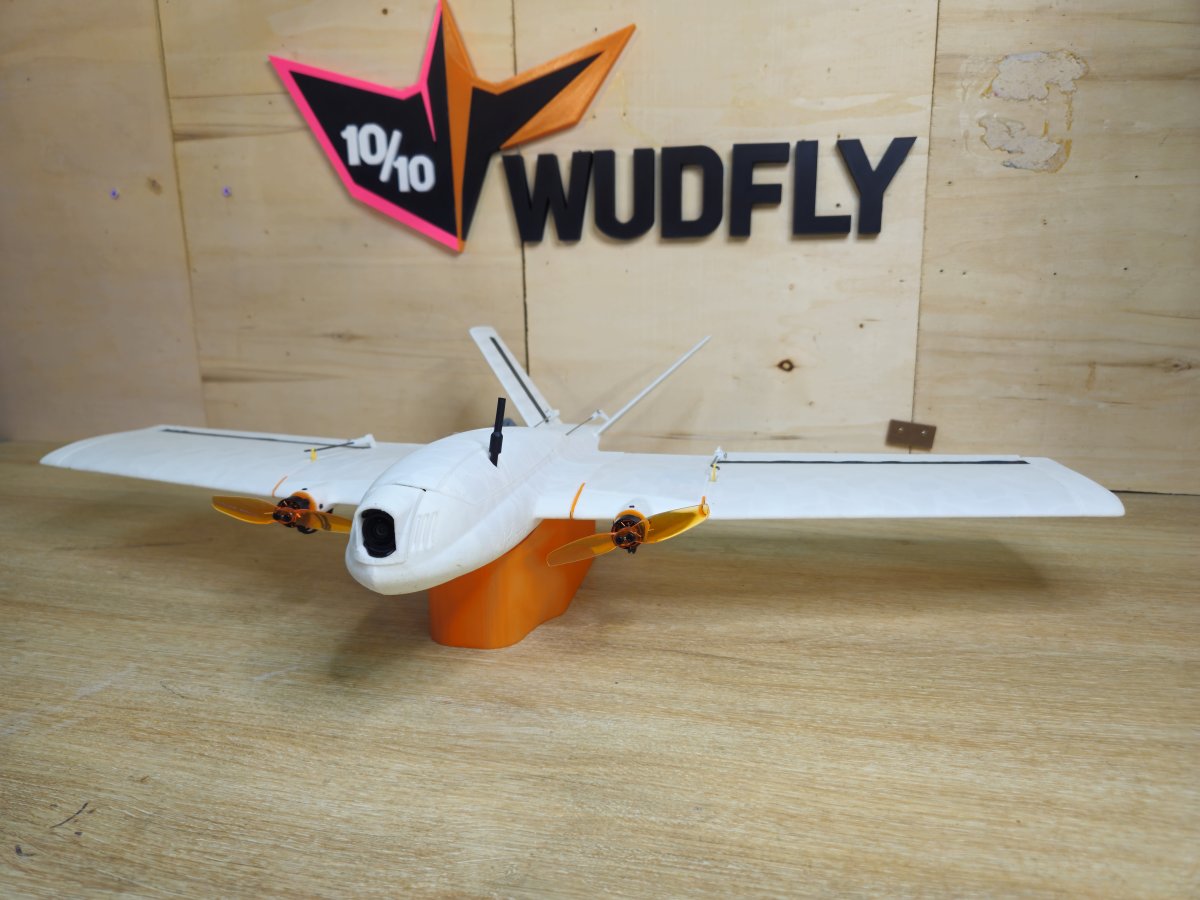

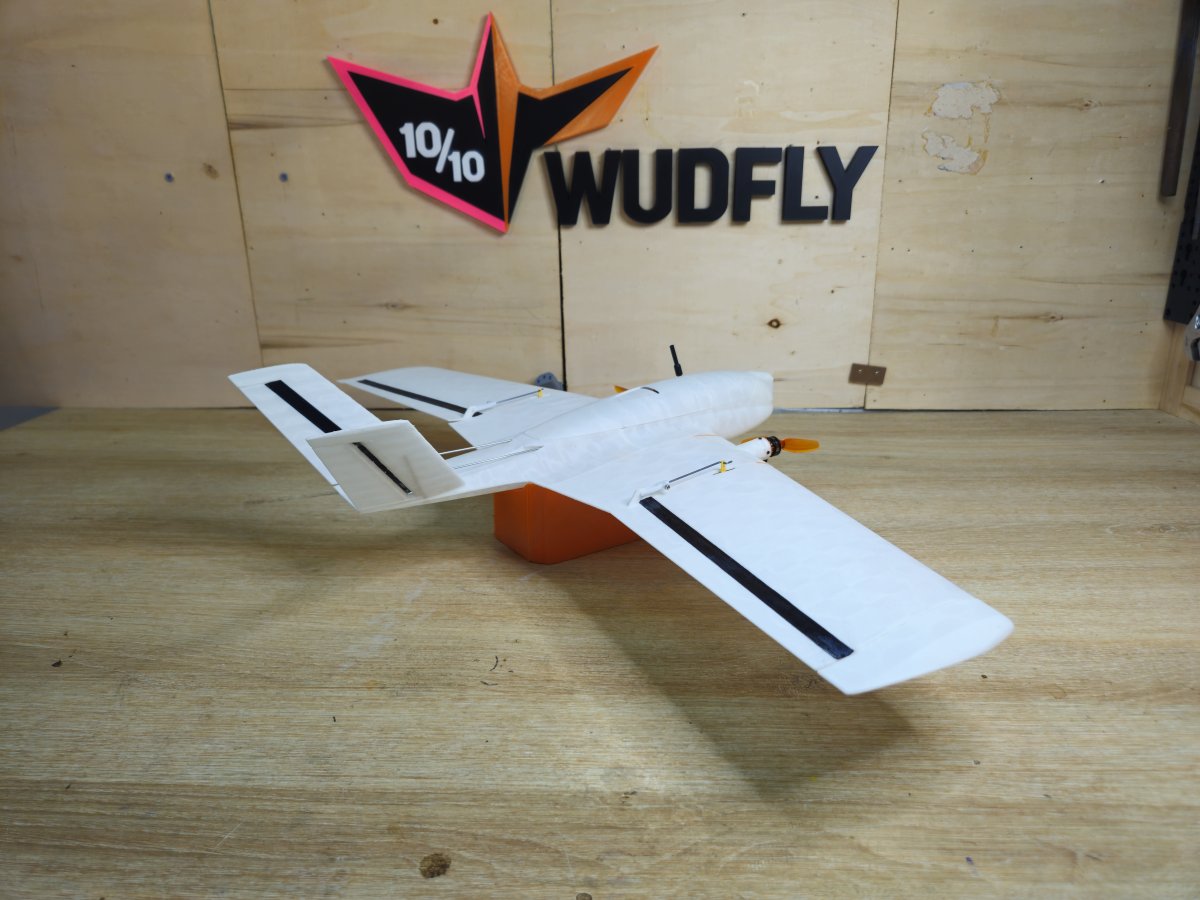

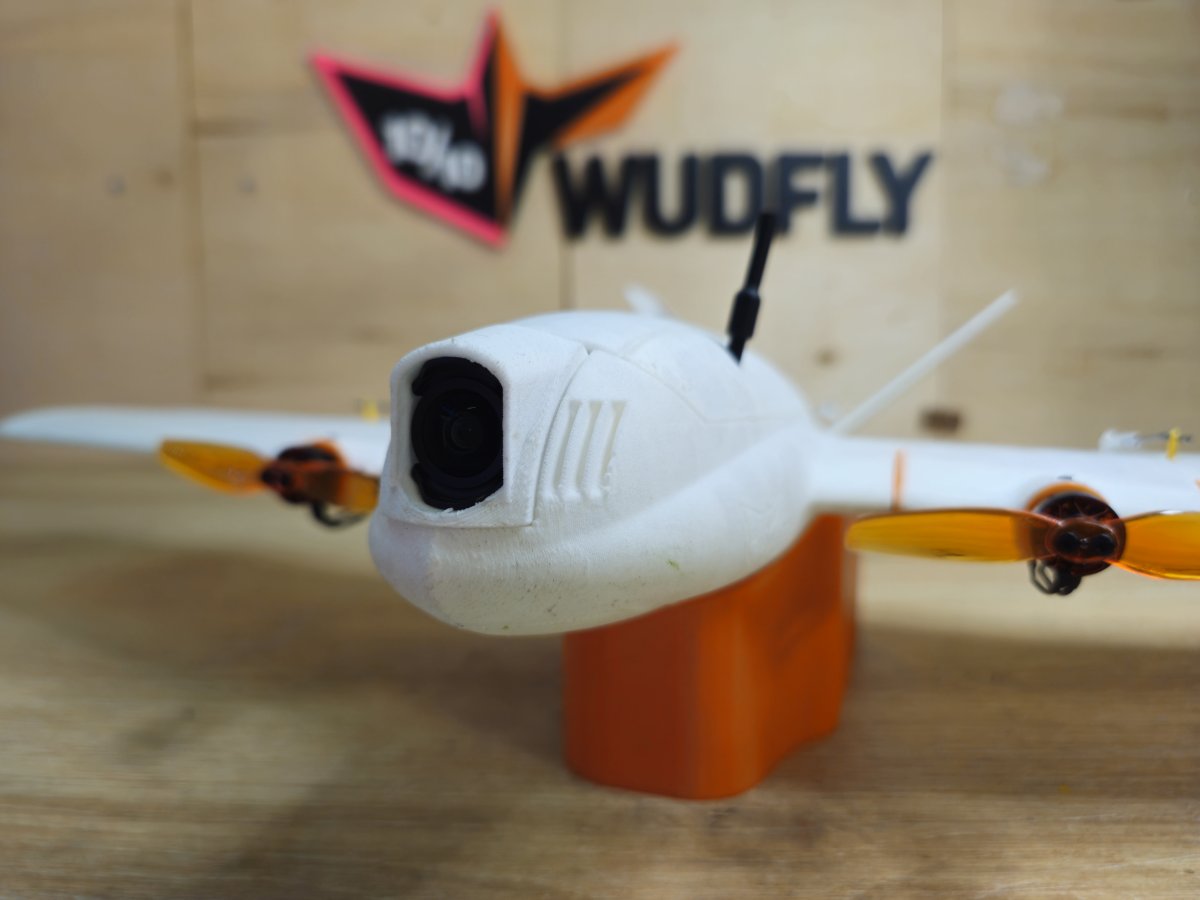

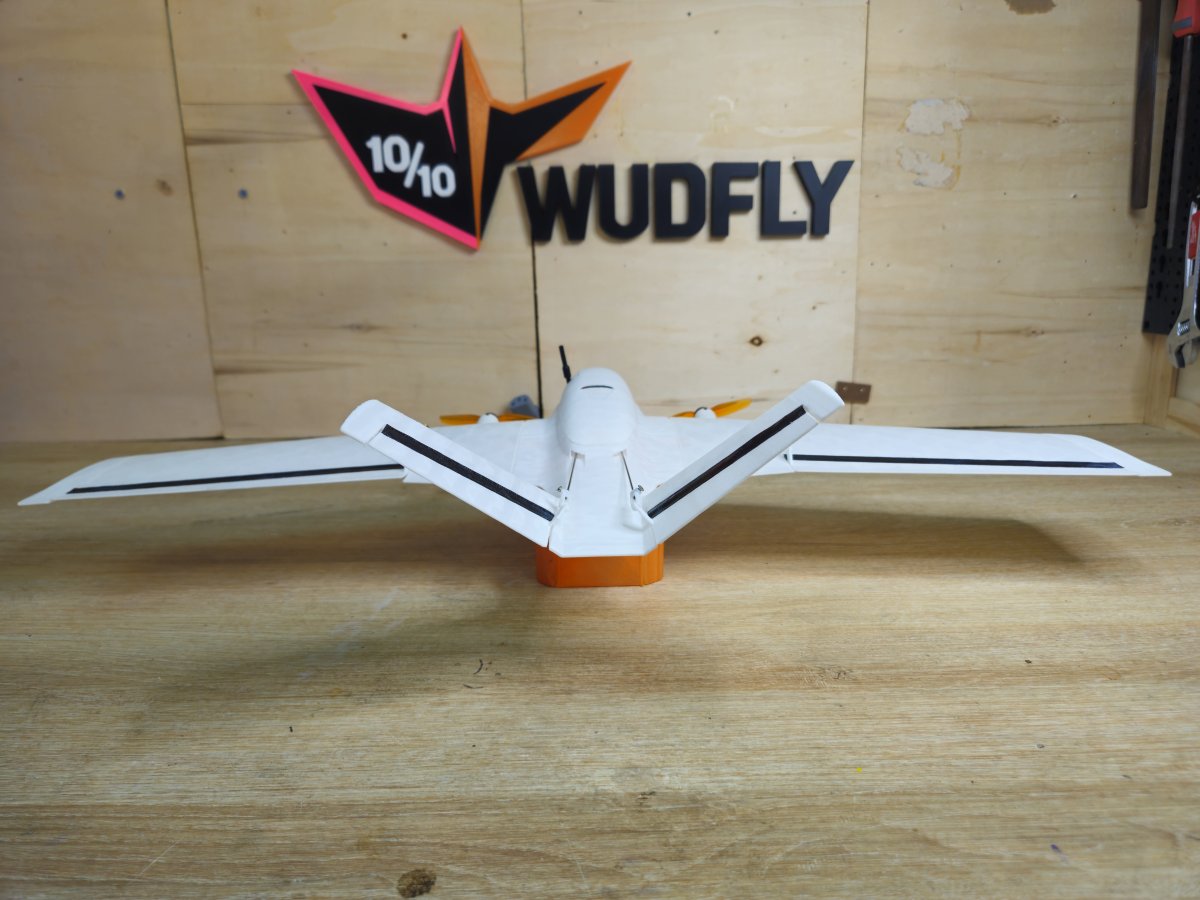

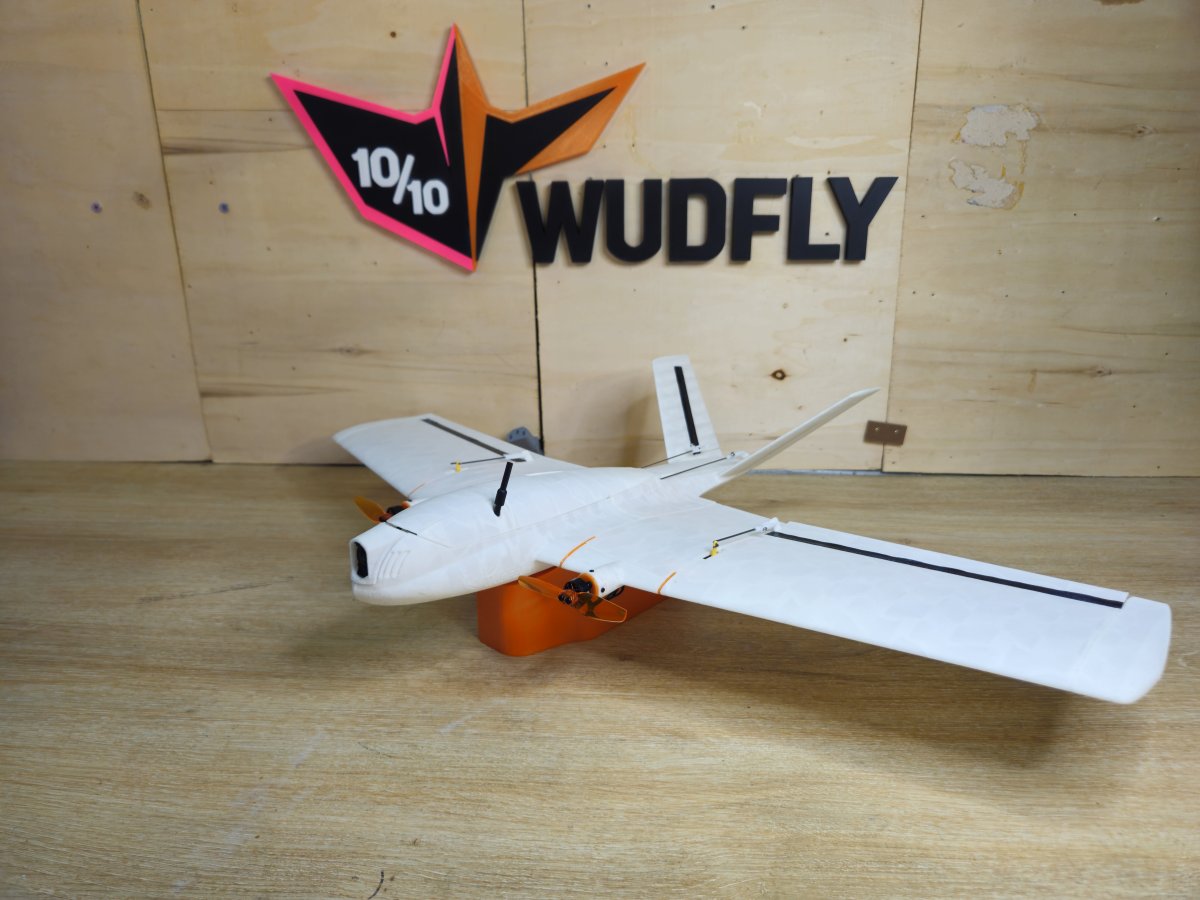

Aircraft gallery.
Choose an angle below. Click the large photo for a full-size view; detailed component photos follow the carousel.
Inside the aircraft.

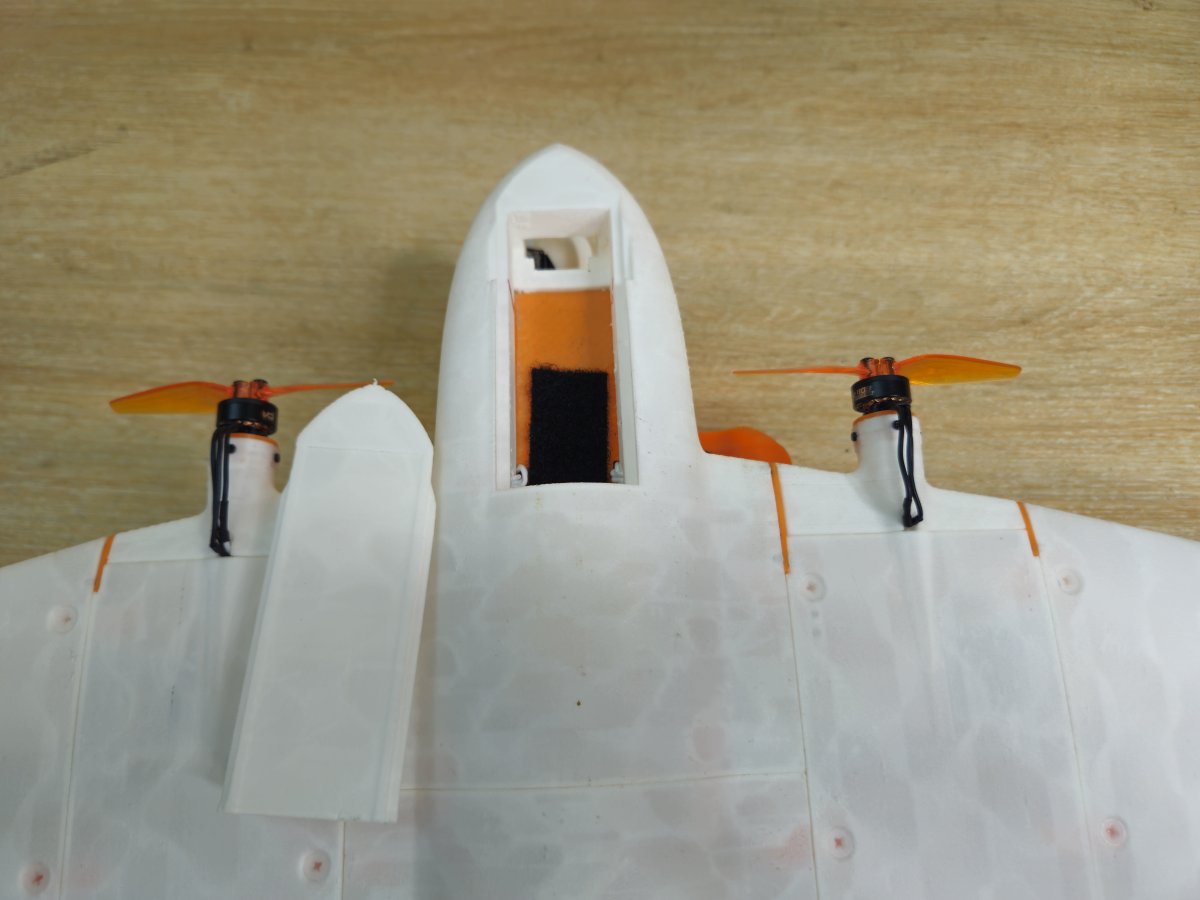

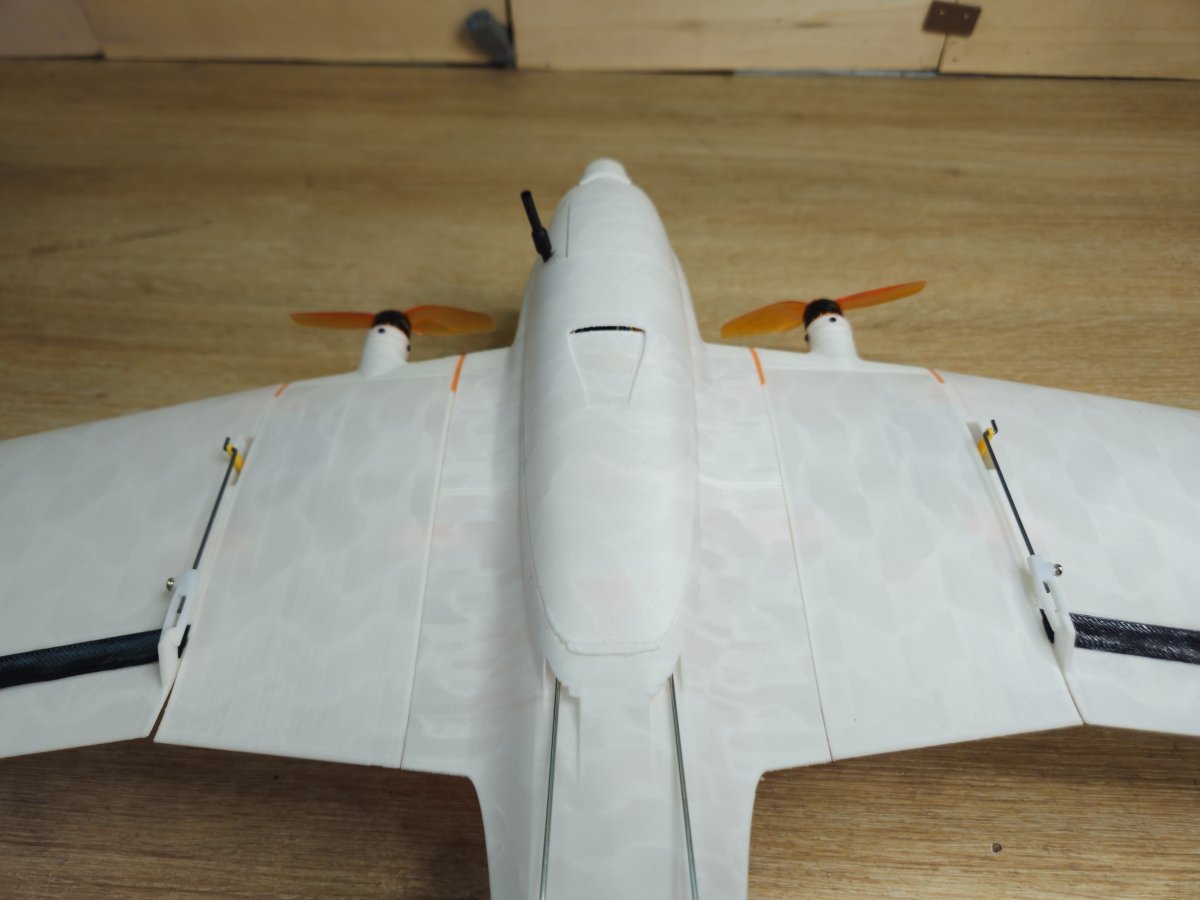

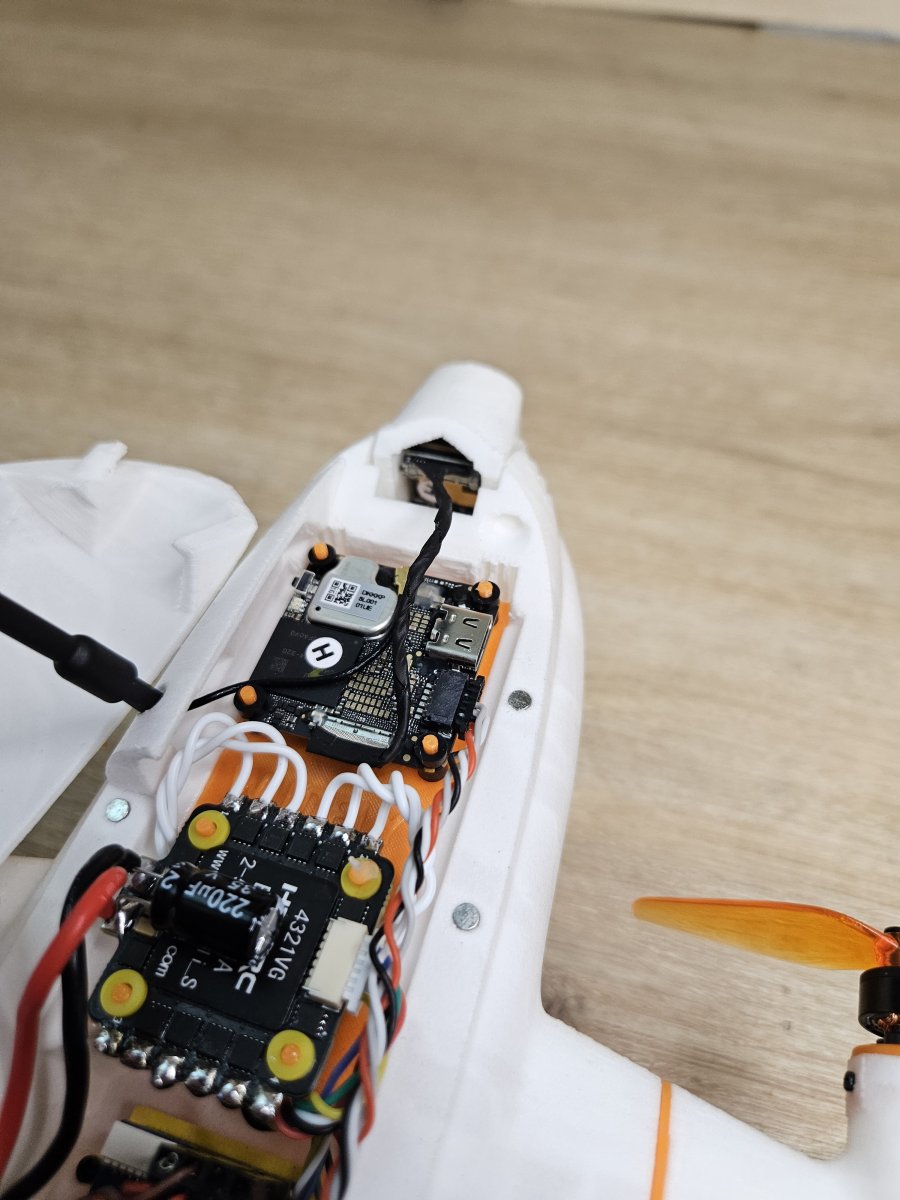

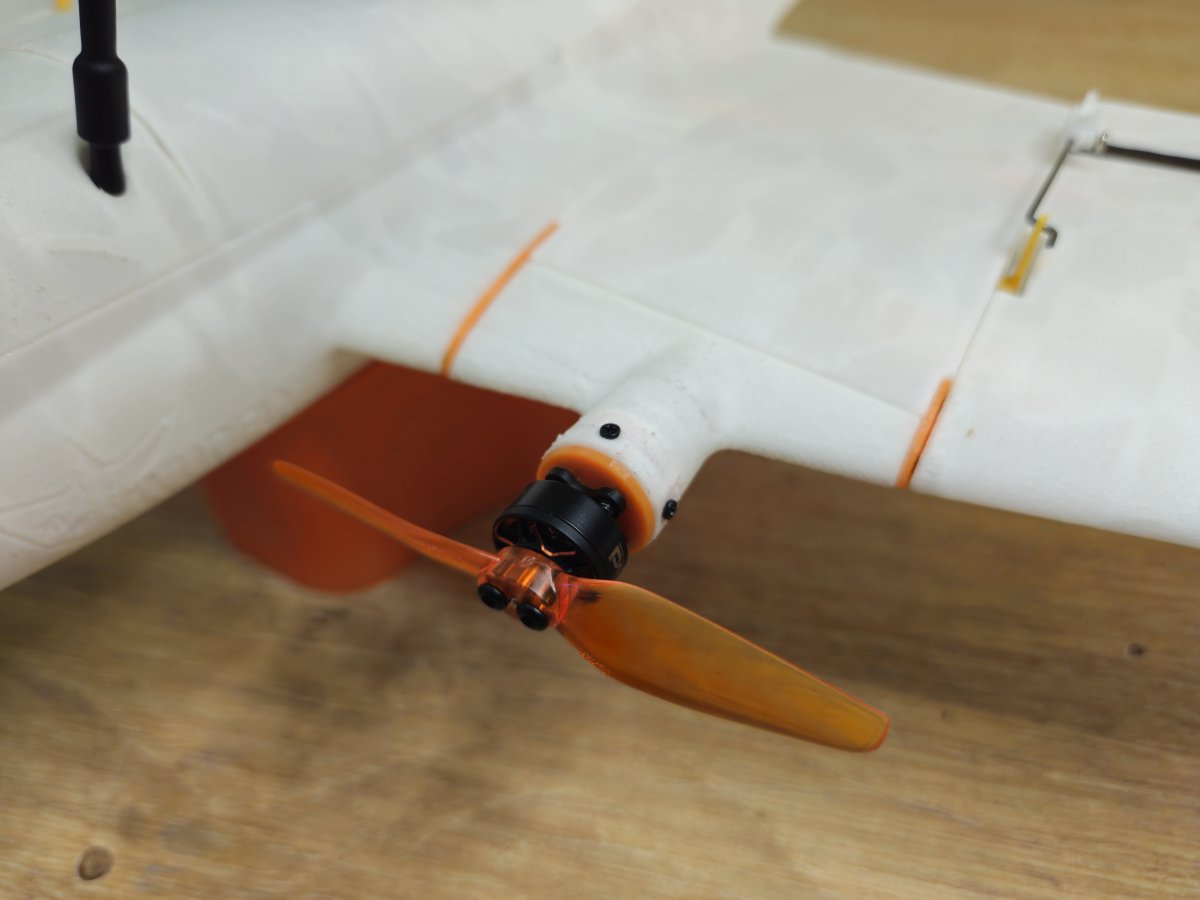

Five close-up views of the battery installation, motor, cooling duct, electronics and wing hardware.
See VENOM in action.
More VENOM flight footage, including the aircraft in action from outside the onboard FPV view. Watch on YouTube or explore the engineering, modular wings and illustrated build previews above.
Core electronics.
VENOM is built around a tried-and-tested electronics setup, with many of the same components used across other WUDFLY aircraft. These are the motors, servos, flight controller and FPV components I have used throughout development and flight testing. I trust their performance, build quality and the manufacturers behind them—which is why I recommend this specific configuration.
Designed around the actual hardware. The printed mounts, equipment bays and internal routing are built for the reference components below. They fit where intended without having to redesign the aircraft; follow the build guide for installation, wiring and configuration.
| Role | Reference part | Qty | Total mass |
|---|---|---|---|
| Battery | Flywoo Explorer 1000 mAh LiHV 2S 80C | 1 | 45.3 g |
| Flight controller | Matek F405 Wing WMO + FC cable | 1 | 11.4 g |
| ESC | HAKRC 4-in-1 25A | 1 | 6.0 g |
| Motors | VCI Spark 1103 · 11000KV | 2 | 8.8 g |
| Propellers | Gemfan 3020 | 2 | 1.9 g |
| Servos | DSPOWER 3.7G S002M JR2.54 | 4 | 18.8 g |
| Receiver | RadioMaster RP1 ELRS | 1 | 1.7 g |
| FPV camera | DJI O4 Wide camera | 1 | 8.3 g |
| FPV VTX | DJI O4 VTX | 1 | 5.2 g |
| FPV cable | DJI O4 VTX cable | 1 | 1.2 g |
| Capacitor | 35V 2200 µF | 1 | 0.8 g |
| Airframe + assembly | Complete printed structure, carbon, hinges and hardware | 1 | 140.0 g |
| REFERENCE AIRCRAFT TOTAL | 249.4 g | ||
What the package covers.
VENOM is sold as printable aircraft files, not as a physical model. The documentation explains the reference build, materials and assembly workflow; electronics and hardware are sourced separately.
- Printable aircraft filesVENOM fuselage, modular wing sections, V-tail, mounts, jigs and aircraft-specific printed components.
- Reference bill of materialsThe documented 2S / DJI O4 Wide electronics package, plus the airframe and assembly hardware references.
- Illustrated VENOM build guidePrinting and mechanical assembly illustrated step by step. View the build guide.
- Printing resourcesMaterial preparation and the WUDFLY reference print profiles for LW-PLA, PETG and TPU.
- Flight-controller setupUse the VENOM-specific INAV setup material accompanying the supported reference configuration; verify output mapping, control directions and failsafe on your aircraft.
- Aircraft-file updatesFuture revisions to the purchased VENOM files are included with the one-time purchase.
VENOM FAQ.
A few essentials for builders comparing VENOM with the rest of the WUDFLY Hangar.
What makes VENOM different from SPECTRE?
Both are compact 2S twin-tractor FPV wings. VENOM adds a V-tail with two ruddervators alongside two elevons, giving it aerodynamic control over pitch, roll and yaw. It is tuned for low-level Acro and coordinated turning.
What are the flight figures?
The current reference figures are 100 km/h top speed, approximately 70 km/h cruise and 25 km/h stall speed. The 1000 mAh 2S LiHV reference battery provides approximately 9 minutes of sport flying. Real-world results depend on the finished build and conditions.
Is the aircraft under 250 g?
The revision-01 reference bill of materials totals 249.4 g with the Explorer 1000 mAh 2S LiHV battery and DJI O4 Wide. Every builder must weigh their finished aircraft rather than assuming the calculated BOM mass is guaranteed.
Can the wings be removed?
Yes. VENOM uses a modular WingLoc arrangement with printed attachment hardware and a carbon spar. The removable sections make transport, maintenance and repairs easier.
What printer size do I need?
Minimum build volume is 180 × 180 × 180 mm. The primary airframe uses LW-PLA, with PETG functional parts and TPU control-surface hinges.
What electronics are used?
The reference build specifies two VCI Spark 1103 motors, four DSPOWER S002M servos, a Matek F405 Wing WMO, HAKRC 4-in-1 ESC, RadioMaster RP1 ELRS receiver and DJI O4 Wide video system.
Does the CHF 39 price include hardware?
No. VENOM is a digital package containing printable aircraft files and supporting project documentation. Filament, electronics, batteries and hardware are purchased separately.
Where can I find the build instructions?
The illustrated VENOM build guide is available at https://wudfly.com/venom-build-guide.
Ready to build VENOM?
Get the printable VENOM aircraft package for CHF 39, follow the illustrated build guide and assemble your own modular V-tail FPV wing. One purchase includes future aircraft-file updates.
